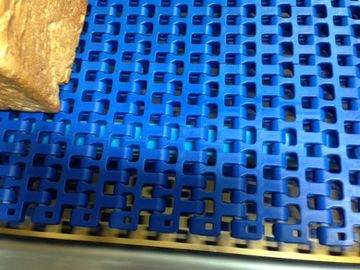

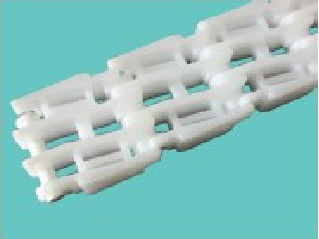

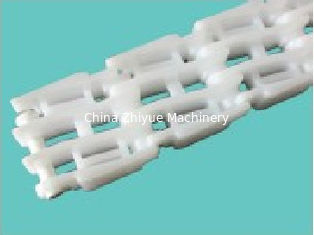

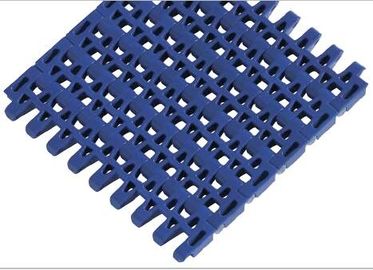

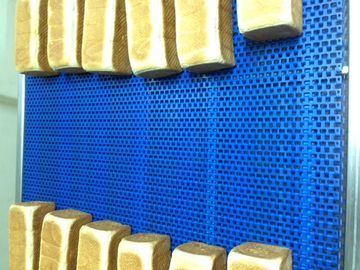

ZY900RR MOLD TO WIDTH RAISED RIB MODULAR CONVEYOR BELT INTRALOX S900 MODULAR BELTINGS

Imagem Grande : ZY900RR MOLD TO WIDTH RAISED RIB MODULAR CONVEYOR BELT INTRALOX S900 MODULAR BELTINGS

Detalhes do produto:

Place of Origin:	China
Marca:	Zhiyue
Certificação:	ISO9001
Model Number:	ZY900RR

Condições de Pagamento e Envio:

Minimum Order Quantity:	20SQM
Preço:	1-120USD/SQM
Packaging Details:	5MTRS/ROLL
Delivery Time:	5-30DAYS
Payment Terms:	T/T LC DP WESTERNUNION MONERYGRAM
Supply Ability:	500SQM/M

Contato

Descrição de produto detalhada

Standard or Nonstandard:	Standard	Type:	Flat Belt
BELTS TYPE:	ZY900RR RAISED RIB MODULAR BELTS	PITCTH:	27.2MM
BELTS MATERIALS:	PP/POM	PIN MATERIALS:	NYLON
COLOR:	WHITE/BROWN/BLUE

ZY900RR MOLD TO WIDTH RAISED RIB MODULAR CONVEYOR BELT S900 MODULAR BELTINGS

CODE	MAT.	WORK TEP.	WORK LOAD	WEIGHT	OPEN AREA	COLOR
CODE	MAT.	℃	N/M(25℃)	Kg/㎡	OPEN AREA	COLOR
ZY900RR-29	POM	-40~+90	640	0.30	38%	BLUE/WHITE
ZY900RR-29	PP	+1~+105	400	0.20	38%	BLUE/WHITE
ZY900RR-37	POM	-40~+90	640	0.36	38%	BLUE/WHITE
ZY900RR-37	PP	+1~+105	400	0.25	38%	BLUE/WHITE
ZY900RR-56	POM	-40~+90	640	0.43	38%	BLUE/WHITE
ZY900RR-56	PP	+1~+105	400	0.28	38%	BLUE/WHITE

etiqueta:

correia de plástico,

correias transportadoras modulares

Contacto

CHINA ZHIYUE MACHINERY CO.,LTD

Pessoa de Contato: Mr. Rock Cui

Fax: 86-021-59790399
