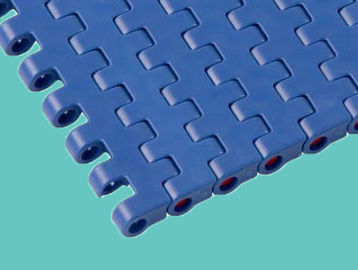

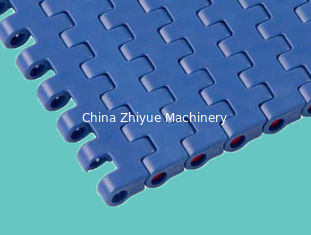

ZY800FT Plastic flat top modular belts solid top conveyor belts UNI CHAINS QNB blue color FDA FOOD GRADE

Imagem Grande : ZY800FT Plastic flat top modular belts solid top conveyor belts UNI CHAINS QNB blue color FDA FOOD GRADE

Detalhes do produto:

Place of Origin:	China
Marca:	Zhiyue
Certificação:	ISO9001
Model Number:	ZY-800FT

Condições de Pagamento e Envio:

Minimum Order Quantity:	20SQM
Preço:	1-120USD/SQM
Packaging Details:	5MTRS/ROLL
Delivery Time:	5-30DAYS
Payment Terms:	T/T LC DP WESTERNUNION MONERYGRAM
Supply Ability:	500SQM/M

Contato

Descrição de produto detalhada

Standard or Nonstandard:	Standard	Type:	Flat Belt
Material:	POM	Color:	white/blue
Application:	food and beverage line	Condition:	100% new

ZY800FT Plastic flat top modular belts solid top conveyor belts UNI CHAINS QNB blue color FDA FOOD GRADE

CODE	MAT.	WORK TEP.	WORK LOAD	WEIGHT	OPEN AREA	COLOR
CODE	MAT.	℃	N/M(25℃)	Kg/㎡	OPEN AREA	COLOR
ZY800FT	POM	-40~+90	15000	8.4	0%	BLUE/WHITE
	PP	+1~+105	7500	5.4		BLUE/WHITE
	PE	-50~+80	4500	5.7		BLUE/WHITE

OTHER PRODUCTS:

Applications:

- Bakery applications including dough handling, general conveyance and packaging lines
- Meat applications including tray pack lines and metal detectors
- Seafood applications including grading lines and weighing lines
- Beverage applications including depalletizers, accumulation tables and acceleration lines
- Can manufacturing applications including palletizers, mass handling and accumulation tables
- Corrugated applications including downstacker, corrugator take off, transfer car and WIP storage
