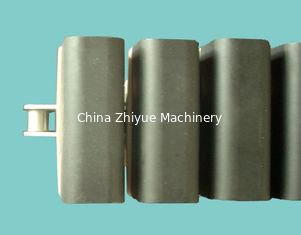

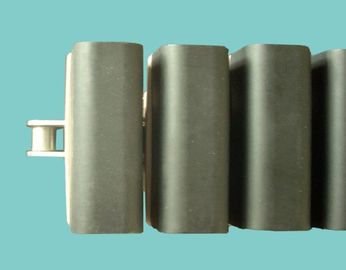

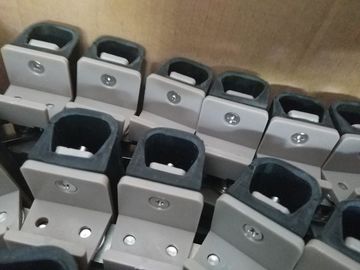

SS1873D-K325 snap on bottle gripper conveyor chains plate top gripping chains pitch 19.05mm

The  Grip chain 1873-D is designed for vertical conveyors where the items are conveyed between

two Grip links. Main application for Grip 1873-D is vertical conveying of containers.

The flights for the 1873-D chain are the Snap-On type. The  Grip chains have a 0.75 in. pitch side flexing roller base chain.

The Grip 1873-D can run in both directions. The recommended temperature area for the Pitch:19.05mm

Width:82.5mm/152.4mm/190.5mm

Code: 1873SS-G4-K325

           1873SS-G4-K325

Materials: POM  Rubber inserts stainless steel base chains

 Grip chain is -40 to +80°C(-40 to +176°F).
