SS963 straight running snap on plate top conveyor chain overlapping plastic flights

Imagem Grande : SS963 straight running snap on plate top conveyor chain overlapping plastic flights

Detalhes do produto:

Place of Origin:	China
Marca:	Zhiyue
Certificação:	ISO9001
Model Number:	963

Condições de Pagamento e Envio:

Minimum Order Quantity:	100mtrs
Preço:	0-30usd
Packaging Details:	10ft/box
Delivery Time:	5-30days
Payment Terms:	T/T LC DP WESTERNUNION MONERYGRAM
Supply Ability:	10000mtrs/M

Contato

Descrição de produto detalhada

Structure:	Top Chain	Function:	Conveyor Chain
Standard or Nonstandard:	Standard	Material:	POM
Color:	BROWN	link chains:	ss304 or carbon steel

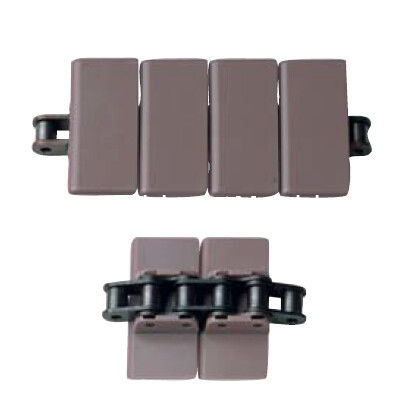

SS963 straight running snap on plate top conveyor chain overlapping plastic flights

The straight running 963 chains are designed with overlapping plastic flights assembled on a special roller chain with extended pins. This is an advantage especially at high speeds, because it reduces the noise level. The Snap-On chains are very suitable for the food processing industry. 963 chain has a 0.75 in. pitch side flexing roller base chain. The plastic flights can be supplied in widths from 82.6 mm (3.25 in.) to 190.5 mm (7.50 in.).

SS963 straight running snap on plate top conveyor chain overlapping plastic flights 1

snap on chains and flex chains.pdf
