1873-D snap on table top gripper chains plate top conveyor chains for bottling conveypor lines

Imagem Grande : 1873-D snap on table top gripper chains plate top conveyor chains for bottling conveypor lines

Detalhes do produto:

Place of Origin:	China
Marca:	Zhiyue
Certificação:	ISO9001
Model Number:	SS1873-D-k325

Condições de Pagamento e Envio:

Minimum Order Quantity:	100mtrs
Preço:	0-30usd
Packaging Details:	10ft/box
Delivery Time:	5-30days
Payment Terms:	T/T LC DP WESTERNUNION MONERYGRAM
Supply Ability:	10000mtrs/M

Contato

Descrição de produto detalhada

Structure:	snap on chains	Function:	Conveyor Chain
Standard or Nonstandard:	Standard	Material:	Plastic
Color:	Black	link chains:	ss304 or carbon steel
Plate Shape:	Rectangular	Chain Material:	Stainless Steel
Chain Link Size:	1.5 inches x 1 inch	Chain Pitch:	1 inch
Chain Link Shape:	Rectangular	Type:	Plate top chains
Condition:	100% new	Application:	Conveyor Systems
Operating Temperature:	0-80 degrees Celsius	Plate Thickness:	0.5 inches

1873-D snap on table top gripper chains plate top conveyor chains for bottling conveypor lines

The Grip chain 1873-D is designed for vertical conveyors where the items are conveyed between

two Grip links.Main application for Grip 1873-D is vertical conveying of containers. The flights for the 1873-D chain are the Snap-On type. The Grip chains have a 0.75 in. pitch side flexing roller base chain.

The Grip 1873-D can run in both directions.The recommended temperature area for the Pitch: 19.05mm Width: 82.5mm /152.4mm /190.5mm

Code: 1873SS-G4-K325

1873SS-G4-K450

1873SS-G4-K750

Materials: POM Rubber inserts stainless steel base chains Grip chain is -40 to +80°C (-40 to +176°F).

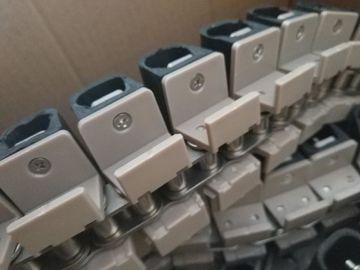

1873-D snap on table top gripper chains plate top conveyor chains for bottling conveypor lines 1

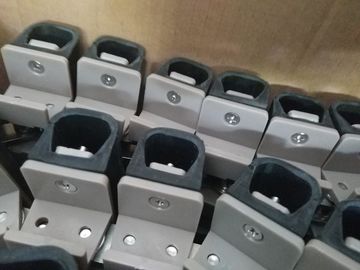

1873-D snap on table top gripper chains plate top conveyor chains for bottling conveypor lines 2

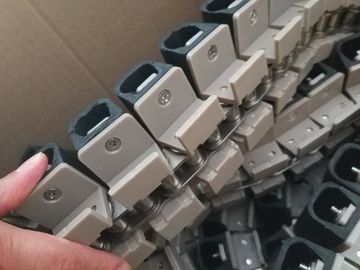

1873-D snap on table top gripper chains plate top conveyor chains for bottling conveypor lines 3

snap on chains and flex chains.pdf
